E-Series Evaporative Air Cooler
An E-Series machine is a type of Evaporative Cooling System, also known as an evaporative air cooler, widely used in large spaces such as factories, warehouses, and commercial buildings. It operates by drawing in ambient air, passing it through wet cooling pads, and distributing the cooled air through ducts to various areas of the building. This process leverages the principle of evaporation, where water absorbs heat from the air, effectively lowering its temperature. Unlike traditional air conditioning units, evaporative cooling systems, like duct air coolers, are energy-efficient and environmentally friendly as they do not use refrigerants and consume less power. They are particularly suited for regions with hot, dry climates, offering cost-effective cooling with minimal maintenance requirements.
E-Series Evaporative Air Cooler
An E-Series machine is a type of Evaporative Cooling System, also known as an evaporative air cooler, widely used in large spaces such as factories, warehouses, and commercial buildings. It operates by drawing in ambient air, passing it through wet cooling pads, and distributing the cooled air through ducts to various areas of the building. This process leverages the principle of evaporation, where water absorbs heat from the air, effectively lowering its temperature. Unlike traditional air conditioning units, evaporative cooling systems, like duct air coolers, are energy-efficient and environmentally friendly as they do not use refrigerants and consume less power. They are particularly suited for regions with hot, dry climates, offering cost-effective cooling with minimal maintenance requirements.
Why Choose Greencon E-Series
E-Series Commercial evaporative air coolers are designed with user-friendly features for easy installation and maintenance. These systems typically include adjustable airflow settings, allowing operators to control cooling capacity based on specific needs. Their low operational costs make them an attractive option for businesses aiming to reduce energy consumption without compromising comfort. Additionally, they rely on natural evaporation rather than harmful chemicals, making them a sustainable solution for long-term use. Continuous airflow improves indoor air quality by reducing humidity and preventing the buildup of airborne pollutants. Overall, E-series duct air coolers provide a reliable, eco-conscious, and cost-effective alternative for cooling large spaces responsibly.
Why Choose Greencon E-Series
E-Series Commercial evaporative air coolers are designed with user-friendly features for easy installation and maintenance. These systems typically include adjustable airflow settings, allowing operators to control cooling capacity based on specific needs. Their low operational costs make them an attractive option for businesses aiming to reduce energy consumption without compromising comfort. Additionally, they rely on natural evaporation rather than harmful chemicals, making them a sustainable solution for long-term use. Continuous airflow improves indoor air quality by reducing humidity and preventing the buildup of airborne pollutants. Overall, E-series duct air coolers provide a reliable, eco-conscious, and cost-effective alternative for cooling large spaces responsibly.

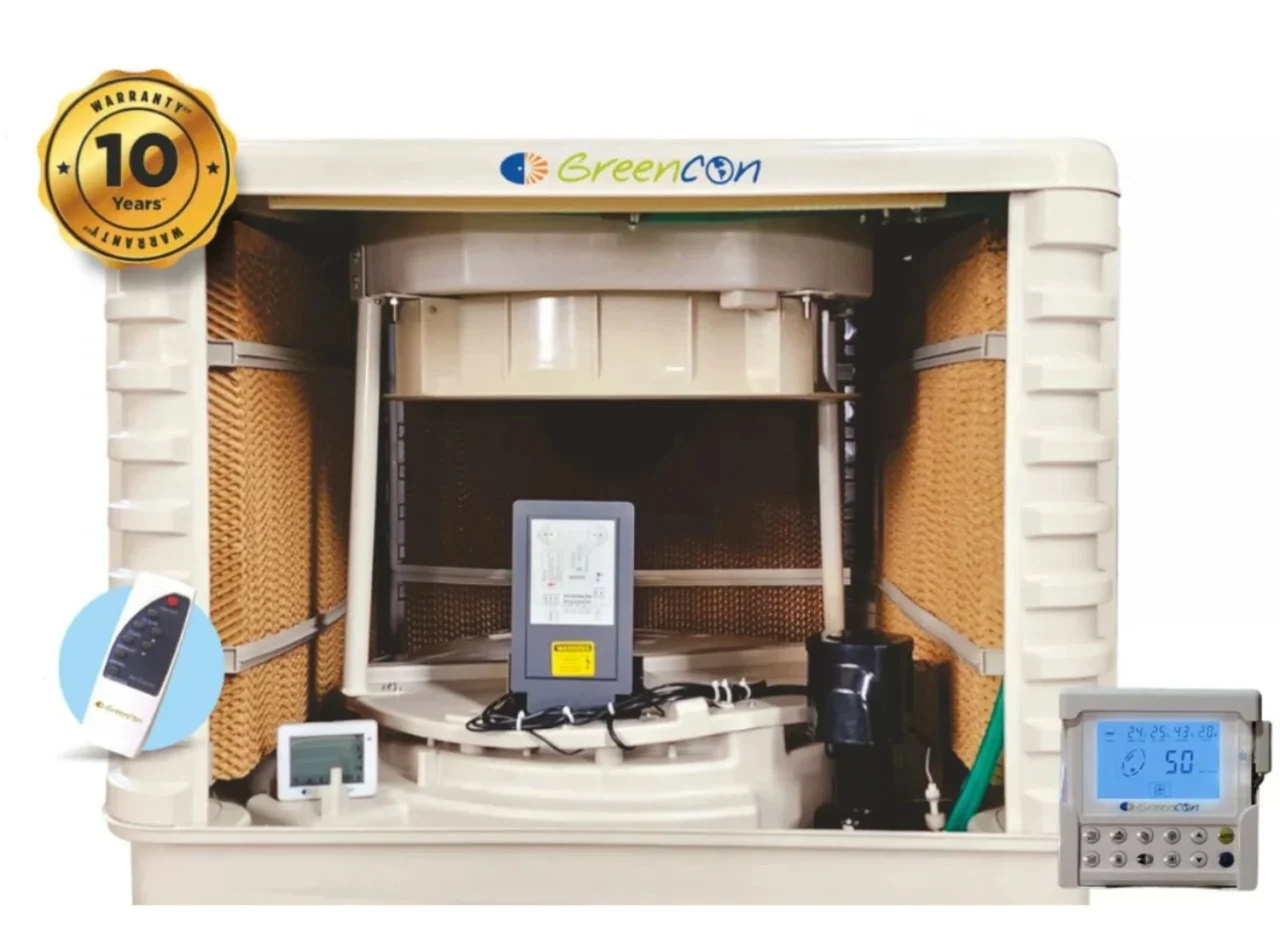

Greencon E-Series - ‘THE INDIAN HERO’
E-Series is an ultimate cooling machine, designed & manufactured to suit Indian conditions & hence making it suitable to tackle all three adverse inputs, i.e., Air, Water, Power
» Air – Automatic de-dusting of air filters
» Water – Auto/programmable drain, self-cleaning pump, level sensing protections
» Power – Under & over load protection of voltage & current with error display
» Ambience – Automatic temperature & humidity control using fuzzy logic
Greencon E-Series Cooler Technical Specification
| Description | Model | |
|---|---|---|
| Model No. | GC-E-18v-S/T/S/ | GC-E-18F-S/T/S/ |
| Air Discharge Option | Down / Top / Side (D/T/S) | Down / Top / Side (D/T/S) |
| Nominal Capacity | 18000 CMH | 18000 CMH |
| Cooling Area | 50 ~ 150 sq.mtr | 50 ~ 150 sq.mtr |
| Product Dimension | 1160 × 1160 × 900/940 mm | 1160 × 1160 × 900/940 mm |
| Net Weight | 77 kg | 77 kg |
| Operating Weight | 120 kg | 120 kg |
| Maximum TSP | 180 Pa | 180 Pa |
| Water Consumption | 70–80 LPH | 70–80 LPH |
| Noise | ≤ 73 dB | ≤ 73 dB |
| Peak Power Consumption | 1.1 kW | 1.1 kW |
| Cabinet | Very high grade PP + additives to withstand adverse weather conditions | Very high grade PP + additives to withstand adverse weather conditions |
| Dust Filter | Yes | Yes |
| Microprocessor Controller | Wi-Fi Display | Wi-Fi Display |
| Cordless Remote Controller | Yes | Yes |
| Auto Drain | Yes | Yes |
| Pump & Motor Protection | Yes | Yes |
| Phase | Single Phase | Three Phase |
| No. of Speeds | 50 Speeds | Single Speed |
| Inverter Driven | Yes | No |
| Exhaust / Filter Cleaning | Yes | No |
| Thermostatic Controls | Temp / RH Controls* | No |
| Pre-cooling | Yes | No |
| Intelligent Clean | Yes | No |
| Group Control | Optional | Optional |
Greencon E-Series Comparison With Various Cooling Devices
| Type | Air Conditioner | Centrifugal Coolers | E Series | Ceiling Fan |
|---|---|---|---|---|
| Sample Area (sqmtr) | 1000 | 1000 | 1000 | 1000 |
| Fresh Air Changes/hr | 0 | 40 | 40 | 0 |
| Capacity Required | 77 TR | 1,20,000 CMH | 1,20,000 CMH | 210 CMM × 72 nos |
| No. of Units (Approx) | 51 nos. × 1.5 TR | 40,000 CMH × 03 nos | 18,000 CMH × 7 | 56 |
| Operating Cost in Comparison to AC | 100% | 17% | 7% | 5% |
